What a difference a ray makes
At long last, after a lazy summer and a slow fall, I’ve managed to find some honest-to-God momentum on our kitchen project. Last weekend it was time for one of the most transformative changes yet, the addition of a window in the west wall facing the backyard. Other than bathrooms, the kitchen-to-be was the only place in the house that didn’t get light from more than one direction. So, after discovering old termite damage in the wall during demolition, we decided to remove the affected siding and framing and replace it with a window.

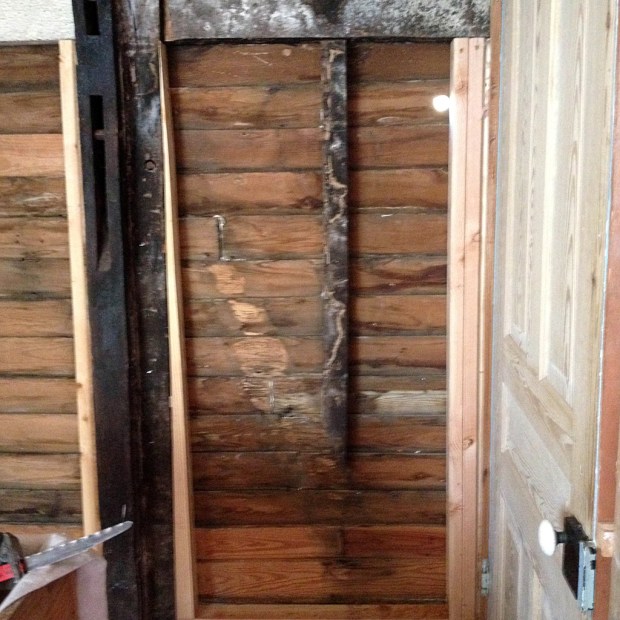

Here’s what we started with:
You can see the termite tunnels across the back of the siding, and the ghost of a diagonal brace that I literally swept away when it crumbled to the touch. This portion of the kitchen is hand-hewn post and beam construction, like the main portion of the house. I suspect that it was a separate structure, perhaps a kitchen house, that was dragged to the site and incorporated as a portion of the north wing of the Ordinary House. It appears to be a similar vintage too, dating to the mid-to-late 1700s.
As I’ve made clear in the past, there’s absolutely nothing plumb or level in our house. The post on the left side of the picture above was once plumb, presumably. Now, however, it’s got so much lean to it that I had to make large tapered shims that went from 2 1/2″ wide down to nothing over the course of 5′-0″ in order to create a plumb opening.
I ordered a wood double-hung window from a local supplier. Since this is likely to be the only window we add to this house, I splurged on a double-hung from one of my favorite window manufacturers, Loewen. Hailing from Canada, Loewen builds beautiful windows with straight grain Douglas Fir. They have nice historically accurate details: tall bottom rails, skinny muntins, and an option for a thick exterior sill. I also ordered the window with preinstalled casings to match the adjacent windows.
The window arrived several weeks ago, and I waited for a good opportunity to stick it in. When the weather report for the weekend looked favorable, I called in reinforcements in the form of my uncle, an experienced and talented carpenter. We began early in the morning by cutting the hole for the window. It was a nerve-wracking moment knowing that the house would be wide open to the elements until the window was in place.

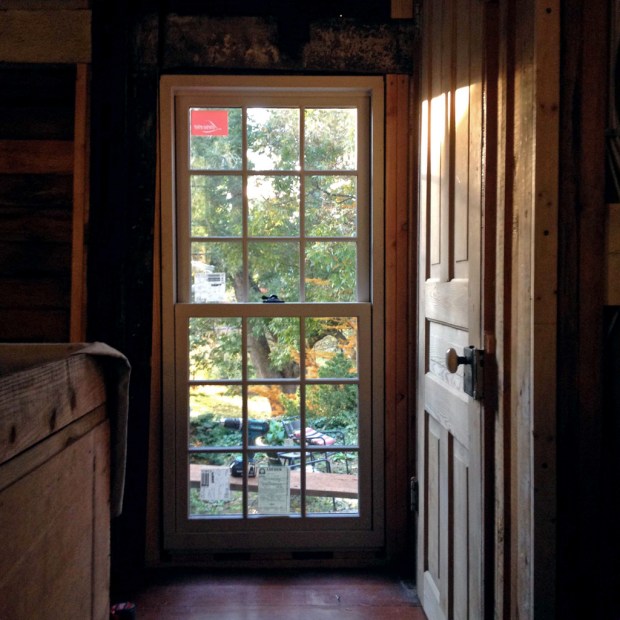

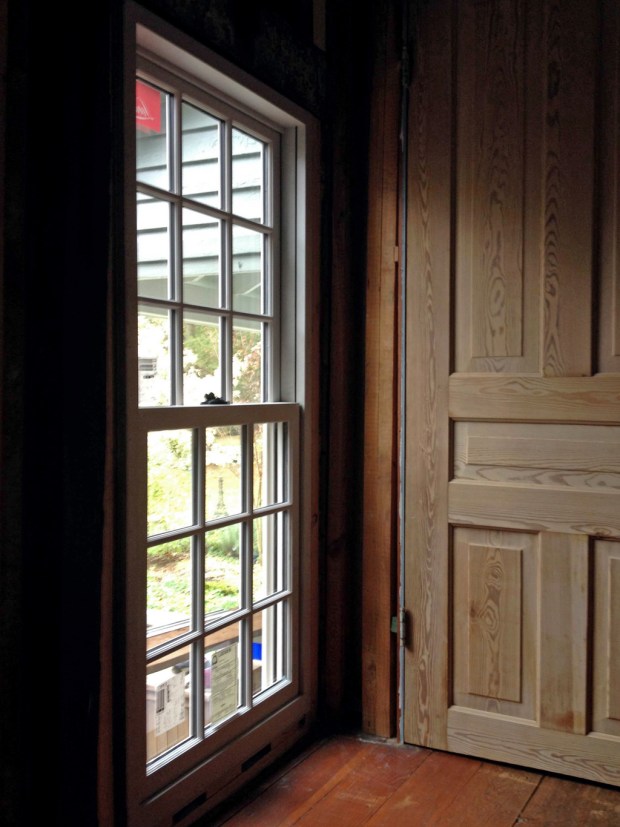

And despite the wonkiness of the house, it only took about 6 hours of measuring, cutting, shimming, leveling and screwing to finesse the window into place. Because the siding of the house sits directly on the studs, and not on sheathing, we had to pay extra attention to waterproofing details and achieving a tight fit. In the end, we were left with this: a beautiful window that looks very much at home, almost as if it has been there all along.
The vibe in the room has been completely altered. The visual connection to the backyard and the additional light make it a far more pleasant place to be. And now I spend a lot of time staring out a portion of the wall that I spent many months avoiding.
